Dual Axis Solar Tracking System with Battery Storage
Project Overview

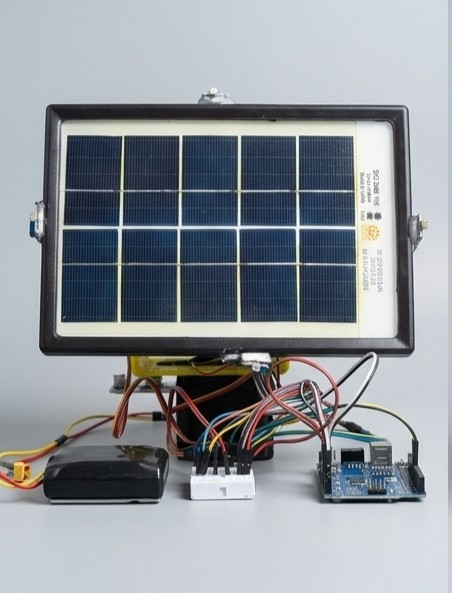

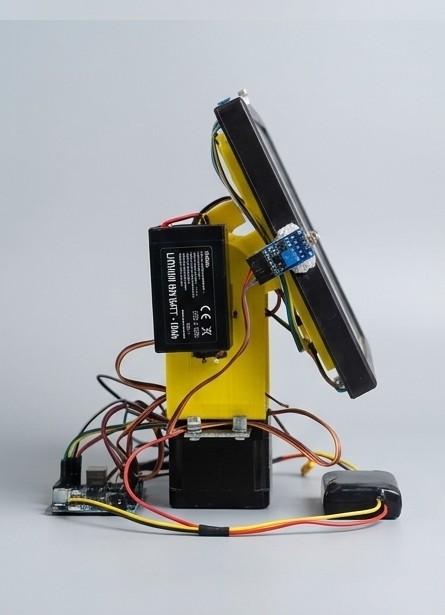

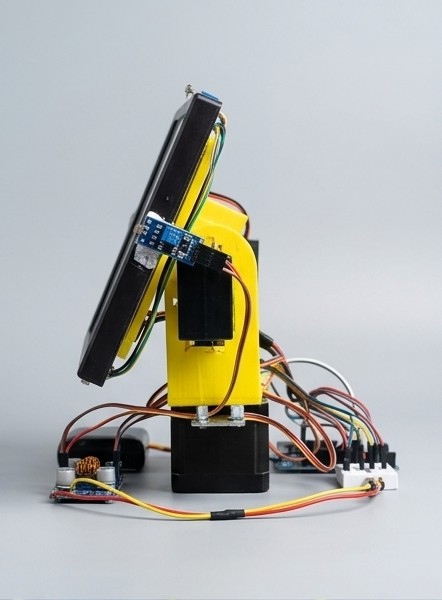

Designed and developed an automatic solar tracking system using a 10W solar panel, four LDR sensors, Arduino UNO, and dual MG996R servo motors. The system continuously monitors sunlight direction and adjusts both horizontal and vertical axes to maintain optimum solar exposure. An 11.1V lithium battery pack stores generated energy for later usage.
Key Technical Details
- Automatic dual-axis sunlight tracking
- Four-direction light sensing
- Servo-based horizontal and vertical movement
- Solar energy harvesting with battery storage
- Improved solar panel efficiency
- Custom mechanical tracking structure
Bill of Materials (BOM)
10W Solar Panelx1
Arduino UNOx1
MG996R Metal Gear Servo Motorx2
LDR Light Sensorsx4
11.1V Lithium Battery Packx1
Solar Charge Controllerx1
Buck Converter Modulex1
3D Printed Solar Tracking Framex1
#include <Servo.h>
Servo horizontalServo;
Servo verticalServo;
int ldrTopLeft = A0;
int ldrTopRight = A1;
int ldrBottomLeft = A2;
int ldrBottomRight = A3;
void setup()
{
horizontalServo.attach(9);
verticalServo.attach(10);
horizontalServo.write(90);
verticalServo.write(90);
}
void loop()
{
int TL = analogRead(ldrTopLeft);
int TR = analogRead(ldrTopRight);
int BL = analogRead(ldrBottomLeft);
int BR = analogRead(ldrBottomRight);
int verticalError = (TL + TR) - (BL + BR);
int horizontalError = (TL + BL) - (TR + BR);
// Servo adjustment logic
delay(100);
}
