Solar Assisted Smart Electric Cycle with Battery Management System
Project Overview

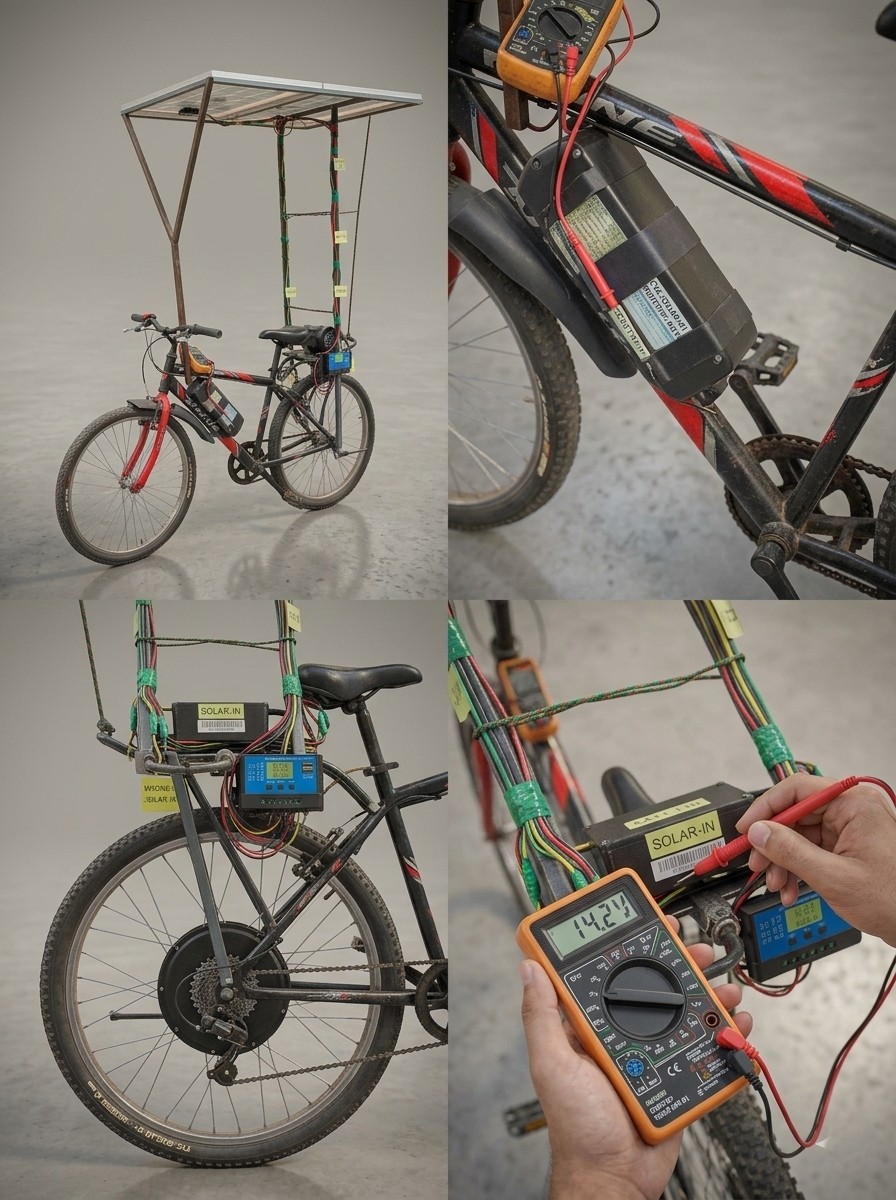

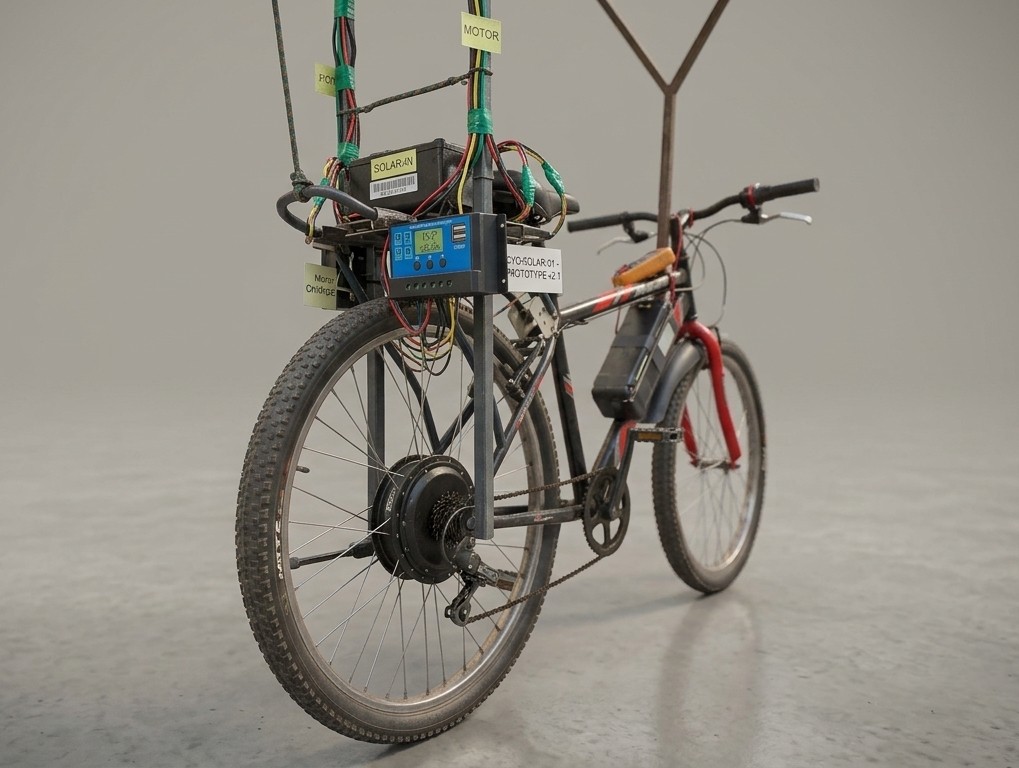

A custom-built smart electric cycle combining BLDC motor propulsion, lithium-ion battery storage, solar charging system, and intelligent Battery Management System (BMS). The solar panel assists battery charging while the BMS provides protection against overcharging, over-discharging, and short circuits, improving battery safety and operational efficiency.
Key Technical Details
- Solar assisted battery charging
- BLDC electric propulsion
- Smart battery protection using BMS
- Energy efficient transportation
- Real-time power monitoring
- Custom mechanical integration
Bill of Materials (BOM)
BLDC Hub Motorx1
Lithium Ion Battery Packx1
Battery Management System (BMS)x1
BLDC Motor Controllerx1
Throttle Modulex1
Cycle Frame & Mechanical Assemblyx1
// Battery Monitoring Example
#define BATTERY_SENSOR A0
void setup(){
Serial.begin(9600);
}
void loop(){
int voltage = analogRead(BATTERY_SENSOR);
Serial.println(voltage);
delay(1000);
