Smart Conveyor Belt System with Battery Management
Project Overview

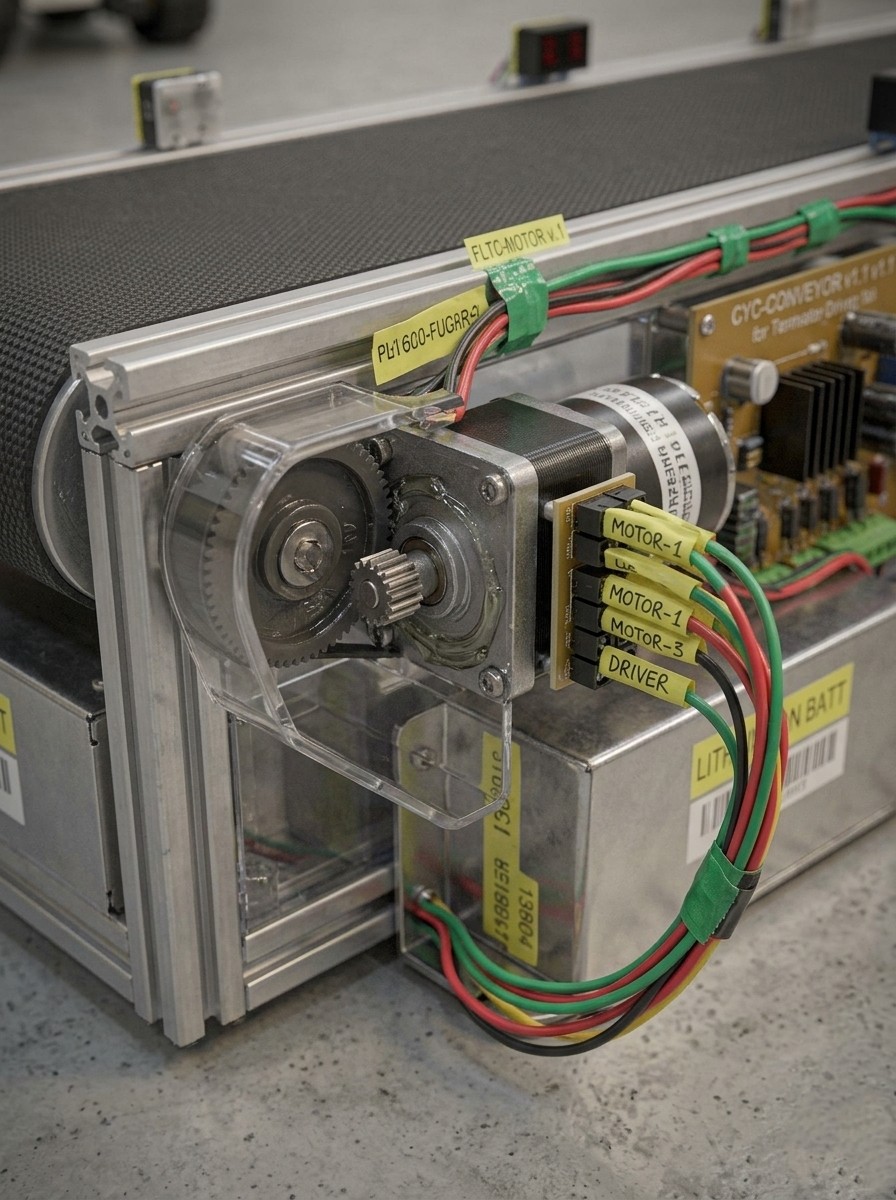

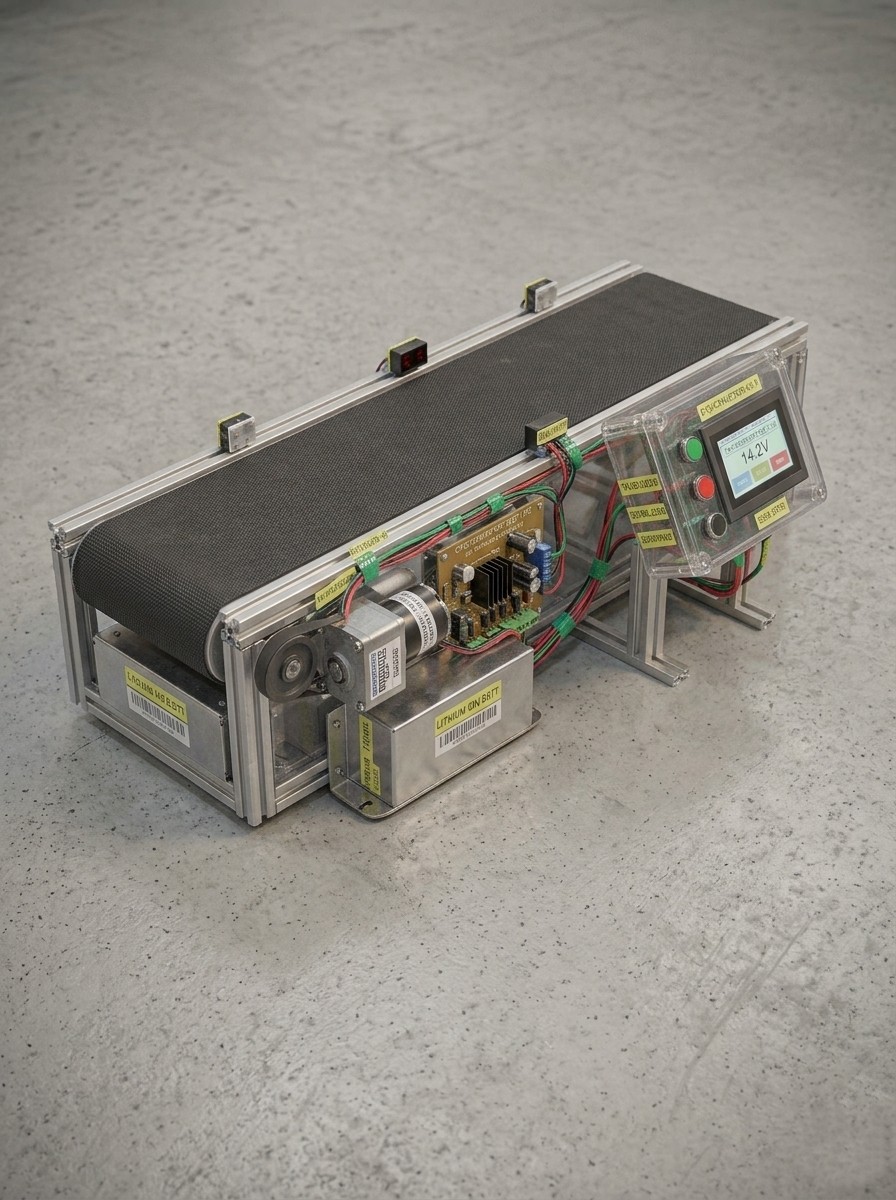

A custom conveyor automation system designed for material movement and industrial applications. The system combines DC motor control, object detection sensors, control electronics, and battery management for reliable industrial operation.
Key Technical Details
- Automatic object detection
- Controlled material movement
- Battery powered operation
- Industrial automation concept
- Expandable sensor integration
Bill of Materials (BOM)
Arduino Controllerx1
DC Gear Motorx1
Motor Driver Modulex1
IR Object Detection Sensorx2
Lithium Battery Packx1
Battery Management System (BMS)x1
Conveyor Belt Assemblyx1
#define MOTOR_PIN 5
#define SENSOR_PIN 7
void setup(){
pinMode(MOTOR_PIN,OUTPUT);
pinMode(SENSOR_PIN,INPUT);
}
void loop(){
if(digitalRead(SENSOR_PIN)){
digitalWrite(MOTOR_PIN,HIGH);
}
else{
digitalWrite(MOTOR_PIN,LOW);
}
}
